Above Ground Manual Roller
Manually operated designed to remove Aquamatic Thermo-blanket pool & spa covers using aluminium roller tube and surface mounted top track system.
ROLLER SYSTEM

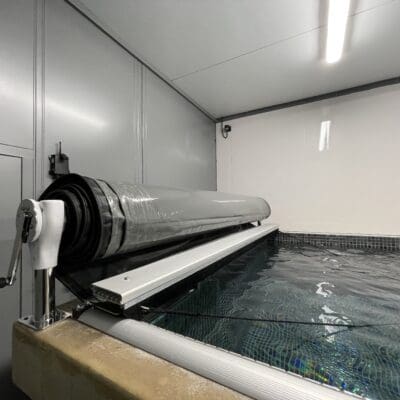

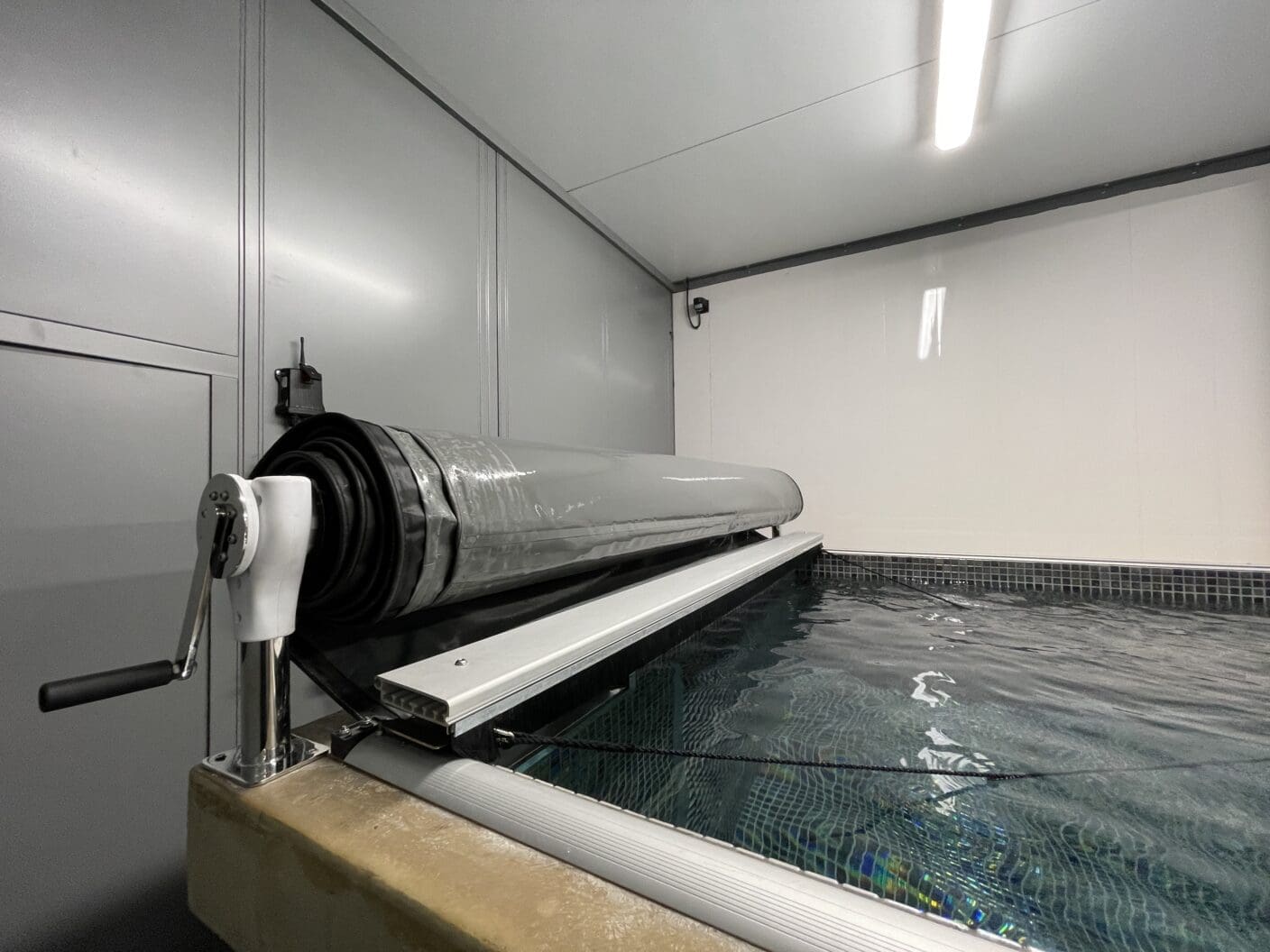

The Above Ground Roller System comprises of an aluminium roller tube connected via white ABS locking device at each end fixed to polished stainless steel leg supports that are secured to pool surround. The fabric material travels back and forth through dome mounted aluminium tracks secured to paving preventing debris entering the pool and minimising heat loss. The cover is manually pulled onto the pool/spa by 20mm marine grade rope and taken off by a stainless/plastic handle device.
• Standard PVC Aquamatic Material – Max Size 8 x 3m
• ThermaFoil – Encapsulated 2.5mm Foil Max Size 7 x 2m
• ThermaFoam – Encapsulated 6mm Foam Max Size 7 x 3m
| Pool Size (m) | Roller System (Single Layer AQM Fabric) | Add ThermaFoil | Add ThermaFoam | Add Debris Brush Extrusion |
|---|---|---|---|---|
| 5.0 x 2.0 | £2,797 | £338 | £476 | £479 |
| 5.0 x 2.5 | £2,910 | £415 | £584 | £479 |
| 6.0 x 2.5 | £3,082 | £489 | £688 | £479 |
| 5.0 x 3.0 | £3,060 | £492 | £692 | £479 |
| 6.0 x 3.0 | £3,203 | £579 | £816 | £479 |
| 7.0 x 3.0 | £3,386 | £667 | £939 | £479 |
| 8.0 x 3.0 | £3,570 | £755 | N/A | £479 |
| Product Code N applicable to above | ||||
| Delivery - £200 |
