Ultraflow Flush Mounted Propulsion System
A self-contained propulsion swim unit that can be installed FLUSH inside of a Concrete or Liner pool construction, to create a resistance swimming pool.
Our training pools are utilising 24V technology to produce a realistic river smooth-like current, with variable speed delivering up to 400 cubic metres of water per hour (normal 3hp swim jets produce 45cbm/phr).

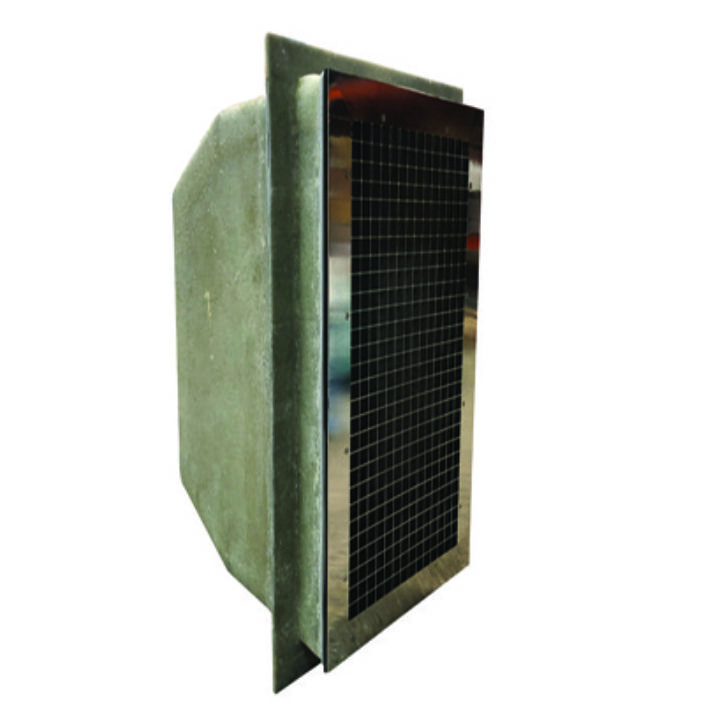

A robust GRP housing is supplied with universal fittings and now comes with two finishes, a black polythene grille with a polished stainless surround and an all stainless steel grille, both enabling a flush-fitting installation within the pool wall.
Specification:
• 160nM 24V Motor
• 2.1kW Motor
• 2.85 HP
• 16 AMP (Type C) breaker
• Gross weight inc. pallet 150kg
• GRP Housing weight 125kg
• Fixing – within pool shell
Information:
• Concrete & Liner Pools Flush Fitting
• Variable Speed
• Remote Control
• 2 Finishes, a 316L Stainless Steel Front Grille or Black Polythene Grille
• 1.7m per second swim speed
• Suitable for Automatic Covers (Slatted & Fabric)

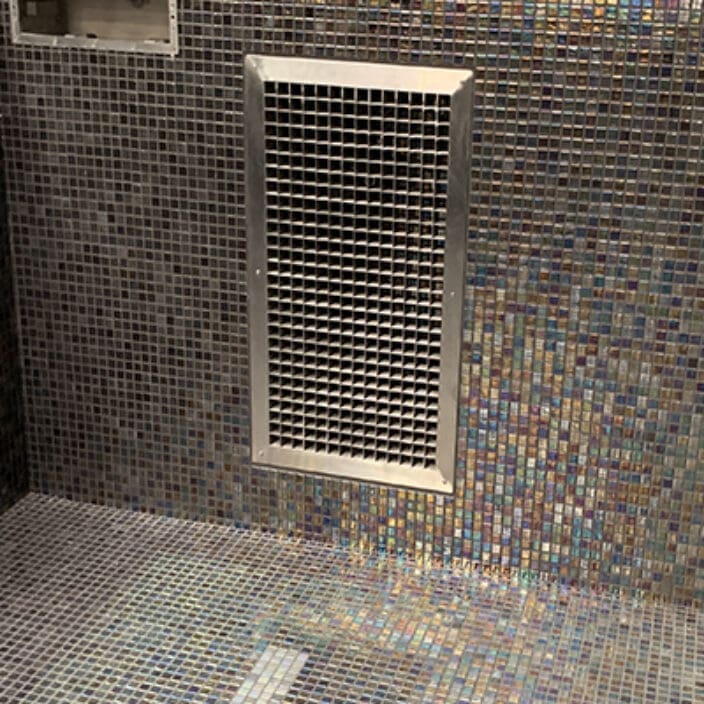

Sleek, Flush Design
Want to see and try it before it arrives?
You or your clients can physically trial the Ultraflow in our new showroom before buying!
Call us today to arrange a visit to our head office.
| Code | Description | Price |
|---|---|---|
| ULT2009-N | Ultraflow GRP Housing, Black Polythene Grille with Polished Stainless Surround, Face Plate & Gaskets | £2,650.00 |
| ULT2000-N | Ultraflow GRP Housing, 316L Stainless Steel Flush Fitting Front Grille, Face Plate & Gaskets | £3,500.00 |
| ULT2001-N | Ultraflow 24V 316L Stainless Steel Propulsion Motor & Support Fixing | £2,095.00 |

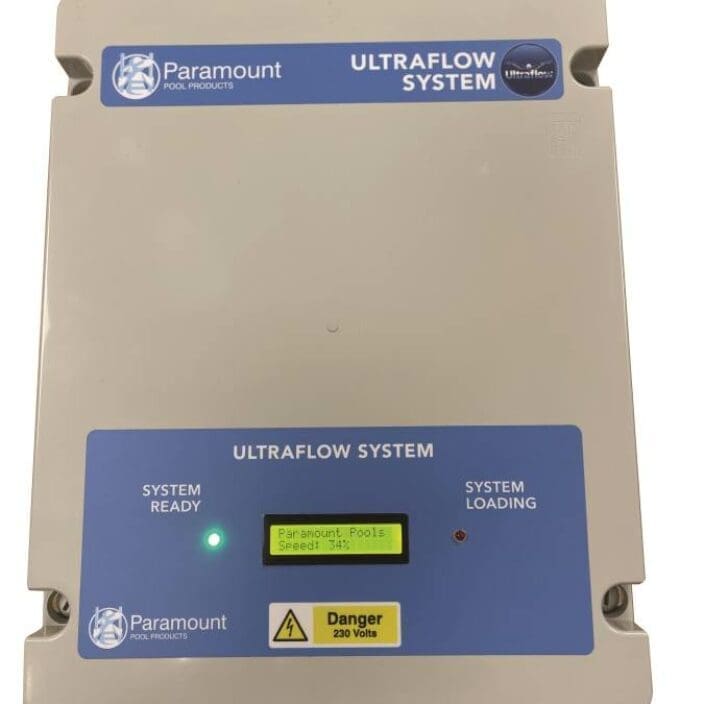

| ULT2002-N | Ultraflow 24V Variable Speed Control Panel with Remote Control | £3,165.00 |
| Optional Products | ||
| ULT2005-N | Ultraflow LED Speed Display with 12m Data Cable | £575.00 |
| ULT2004-N | Replacement Variable Key Fob including processor (non-waterproof) | £85.00 |
| ULT2006-N | Replacement RF Key Fob (old type) | £135.00 |
| ULT2007-N | Replacement Piezo Button | £174.00 |
| ULT2003-N | Upgrade charge to convert Three-Speed Control Panel to Variable Speed with Remote Control | £1000.00 |
| Pallet Truck Delivery | £90.00 | |
| All Prices are excluding VAT |
Putting Swim Speeds into Perspective
Rather than looking at the top .001% of swimmers at Olympic qualifying level, we have compared the speeds of top adult competitive swimmers over a middle distance.
Here’s how they compare:
Short Course Event: Men’s 800m Freestyle Age Group: 25-29 Swimmer: Greg Orpphandies time: 8:13.81
Venue: Sheffield= 1.62 m/s (metres per second)
Short Course Event: Men’s 800m Freestyle Age Group: 40-44 Swimmer: Martyn Price 8:56:09
Venue: Isle of Wight =1.49 m/s (meters per second)
Above are race times – training times are somewhere between 65% and 80% of race times, therefore:
Luxe recommended training speed 1.60 m/s would be between 1m/s and 1.3m/s.
Luxe recommended training speed of 1.50 m/s would be between 0.96 m/s and 1.1 m/s.
Ultra-flow delivers up to 1.7m per second.
Related Products
UltraSwim Plunge Pool System
From £13,995

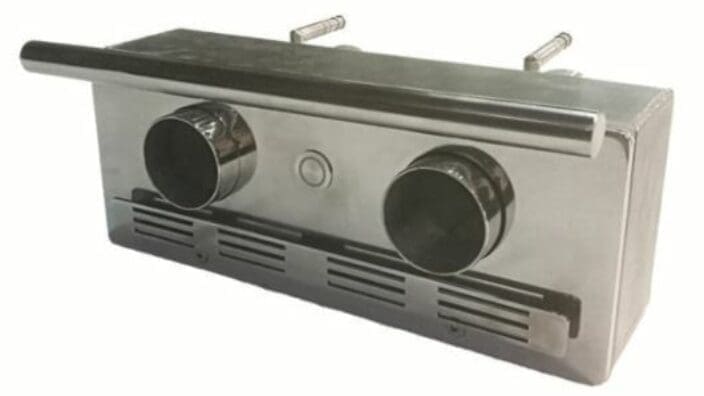

Twin Super Swim Jet
