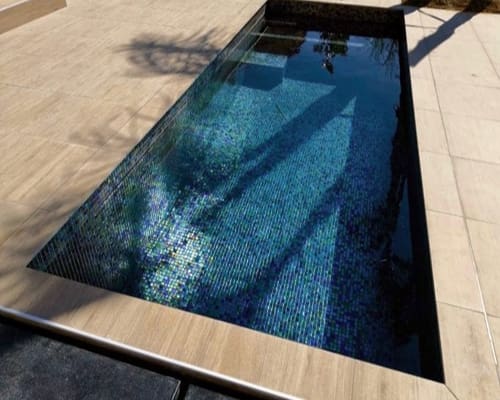

Tilestone Trainer Pools

Designed for the keen keep-fit enthusiast, the Tilestone Trainer Pool is available in compact sizes for smaller environments or indoor projects.
Simply choose the pool size and add the desired swim jet.
All standard training pools are designed to be installed below ground (optional above-ground support available).
Supplied in eight sizes, with a choice of five different mosaic tiles patterns.
This resistance swimming pool comes complete with Kit 500 filtration equipment and factory-fitted ABS pool fittings.

Choice Of Tiles

Choosing the tiled finish is one decision that ultimately has to come from you! There are an insurmountable range of different colours and designs manufactured worldwide. Therefore, we have carefully selected and stocked a range of preferred tiles that are timeless in appearance and most commonly used for outdoor and indoor pools environments.

Discuss your colour and vision with your dealer. If we do not have the tile to accommodate your needs, there is the option for you to free-issue the tiles from your preferred supplier and have the factory apply them!

All our tilestone swimming pools are tiled using a superior epoxy adhesive and grout (four times longer labour time compared to tiling a standard concrete pool) to either large format tiles or standard ceramic/glass type mosaics.

Epoxy grout also ensures the pool remains stain-free in the future too.

Standard Mosiac Tile Range

Emerald Green Mosaic Tile
Style Blue Mosaic Tile
Platinum Grey Mosaic Tile
Pearl White Mosaic Tile
Bali Black Mosaic Tile

Large Format MDI Stone

Urban MDI Stone
Tempesta MDI Stone
Basalto Beige MDI Stone
Kalos Bianco MDI Stone

Tilestone Trainer Pool Options

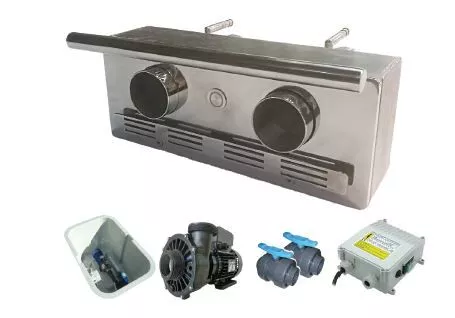

1 – SUPER JET

TWIN SUPER JET (Rectangle) Includes:

2 X 2.2kW (1phase) Pumps 45 cbm/hr each (90 cbm/hr in total)
GRP Box Housing
Pneumatic Switch Box
Piezo Buttons
5” Wall Suctions & Plumbing Valves
Lid Housing not included

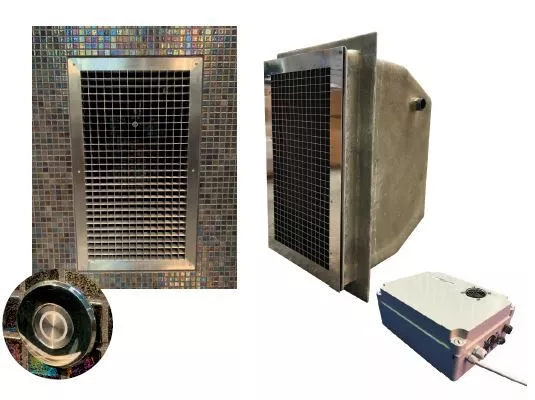

2 – ULTRAFLOW

Ultraflow Flush Mounted 24V motor-driven propulsion system generating 400 cbm/hr – 1.7m per second swim speed
GRP Housing
Stainless Steel Front Grille
Control Panel
Piezo Buttons

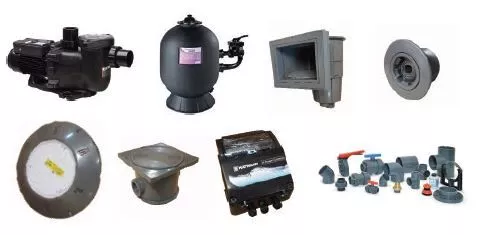

KIT 500 POOL EQUIPMENT

Every Pool Includes:

Sand Filter (Hayward)
Filter Pump (Hayward Max Flow)
ABS Skimmer(s) – GREY
Inlet(s) – GREY
LED Underwater light – GREY
Deck Box – GREY
Electric Control Panel – single phase*
PVC Fittings Kit – 63mm
Flexible PVC pipe (63mm) 50 metre
Cleaning Equipment
Pure-ﬂow Filter media

* Includes RCD, Timer & Light Transformer

Tilestone Trainer Pool Prices

Trainer Pool Size (m)	Price	Super Jet	Ultraflow	Stainless Steel Fitting Upgrade	Steel Frame For Above Ground Installation	Slatted Bench Cover PVC
2.0 x 5.0 x 1.5	£20,844	£4,550	£8,760	£1,100	£3,100	£11,357
2.3 x 4.5 x 1.5	£20,844	£4,550	£8,760	£1,100	£3,100	£11,357
2.5 x 5.0 x 1.5	£21,802	£4,550	£8,760	£1,100	£4,598	£11,578
2.5 x 6.0 x 1.5	£27,741	£4,550	£8,760	£1,100	£6,099	£11,798
3.0 x 5.0 x 1.5	£27,602	£4,550	£8,760	£1,100	£5,096	£11,798
3.0 x 6.0 x 1.5	£30,087	£4,550	£8,760	£1,100	£7,203	£12,060
3.0 x 7.0 x 1.5	£32,578	£4,550	£8,760	£1,100	£9,308	£12,372
3.0 x 8.0 x 1.5	£35,413	£4,550	£8,760	£1,100	£11,097	£12,590
Endless Fast Line SS Support Bracket	£1,357
Endless Pool Wall Rebate 1800 x 750 (max pools length 7m)	£2,985
UK Mainland Delivery (Curtain Side Vehicle)- Min. 5 Tonne Forklift required for offload.	POA
All Prices are excluding VAT.

Warranty:

Pool Shell 10 years
Electrics 2 years.
Power Consumption:15.45 AMPS (20 AMP breaker required)

Note: Suitable manpower/mechanical means must be provided to unload pool package. Installation/Electrical connection is not included.
