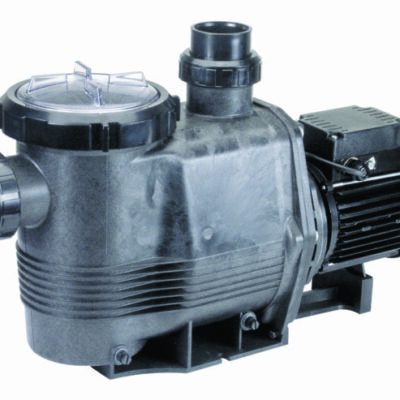

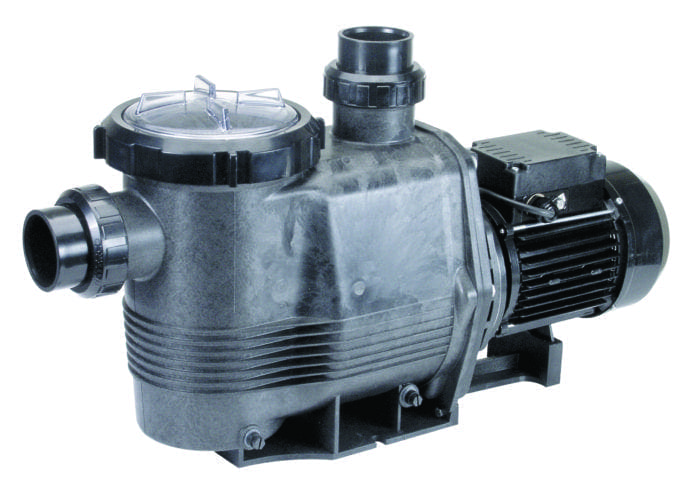

Waterco Hydrostorm Plus Pool Pump
Efficient Impeller and Diffuser Design
The pump’s impeller and diffuser design maximize the hydraulic output of the pump while minimising turbulence. The pump’s efficient hydraulic performance shortens run times and reduces energy consumption leading to lower operating costs.
Engineered Durability
The pump body is manufactured utilising state of the art engineering plastic moulding with a single piece strainer pot and volute for extra strength. An additional unique secondary seal protects the motor end shield from any fluid contact, eliminating corrosion.
Hydrostorm Pump – Connections
Pump supplied with 2” & 63mm metric quick-connect unions. Warranty – 3 years wet end, 2 years motor and 1-year mechanical seal. Not applicable on saltwater pools.

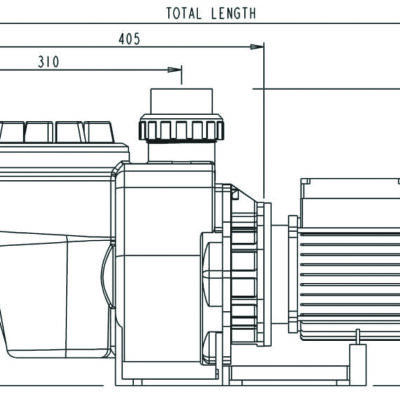

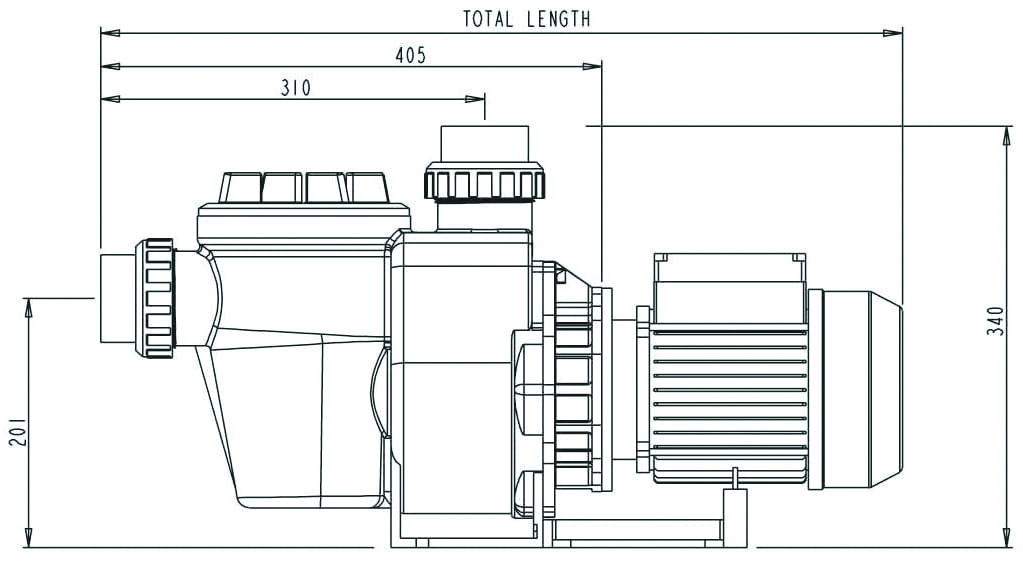

| Length mm | Height mm | Width mm | Pack Weight Kg |
|---|---|---|---|
| 851 | 340 | 227 | 10 |
Waterco’s Hydrostorm Plus Pumps are tested and certified by TÜV Rheinland. TÜV Rheinland is a government authorised testing organisation that awards the GS mark, and is respected worldwide for its strict evaluation criteria and high technical standards. TUV marks, in general, are a sign of documented, objective third-party proof of features or performance of the products, systems, installations and services.
Single Phase Prices
| Code | Description | Price | |
|---|---|---|---|
| 1521-Y | 1.00hp Hydrostorm 100 Plus | (2405100PNR-M) | £897.53 |
| 1522-Y | 1.50hp Hydrostorm 150 Plus | (2405150PNR-M) | £971.04 |
| 1523-Y | 2.00hp Hydrostorm 200 Plus | (2405200PNR-M) | £1,036.34 |
| 1525-Y | 3.00hp Hydrostorm 300 Plus | (2405300PNR-M) | £1,215.82 |
Three Phase Prices
| Code | Description | Price | |
|---|---|---|---|
| 1590-Y | 1.50hp Hydrostorm 150 Plus | (24051503E3EUM) | £971.04 |
| 1591-Y | 2.00hp Hydrostorm 200 Plus | (24052003E3EUM) | £1,036.34 |
| 1593-Y | 3.00hp Hydrostorm 300 Plus | (24053003E3EUM) | £1,186.64 |
| 1594-Y | 4.00hp Hydrostorm 400 Plus | (24054003E3EUM) | £1,500.29 |
Single Phase Performance
| Model | HP | Pmax Kw | Amps | Phase | Total Length mm | Motor Frame | Flow Rate |
|---|---|---|---|---|---|---|---|
| 2405075EUM | 0.75 | 0.81 | 3.5 | 1 | 541 | 71 | 14.60m3/hr |
| 2405100EUM | 1.00 | 0.98 | 4.6 | 1 | 541 | 63 | 19.70m3/hr |
| 2405150EUM | 1.50 | 1.40 | 5.8 | 1 | 646 | 80 | 24.96m3/hr |
| 2405200EUM | 2.00 | 1.51 | 6.3 | 1 | 646 | 80 | 26.56m3/hr |
| 2405250EUM | 2.50 | 1.85 | 7.8 | 1 | 646 | 80 | 30.72m3/hr |
| 2405300EUM | 3.00 | 1.87 | 9.0 | 1 | 646 | 80 | 34.32m3/hr |
Three Phase Performance
| Model | HP | Pmax Kw | Amps | Phase | Total Length mm | Motor Frame | Flow Rate @ 1-3m |
|---|---|---|---|---|---|---|---|
| 24051503EUM | 1.50 | 1.31 | 2.4 | 3 | 646 | 80 | 24.10m3/hr |
| 24052003EUM | 2.00 | 1.46 | 2.5 | 3 | 646 | 80 | 26.560m3/hr |
| 24052503EUM | 2.50 | 1.92 | 3.6 | 3 | 646 | 80 | 30.72m3/hr |
| 24053003EUM | 3.00 | 2.20 | 4.1 | 3 | 646 | 80 | 34.32m3/hr |
| 24054003EUM | 4.00 | 3.08 | 4.1 | 3 | 646 | 80 | 39.54m3/hr |
