STILL RUNNING LIGHT CABLES BACK TO THE PLANT ROOM?
Designed to keep poolside light cabling down to a minimum (maximum length of 7m)!

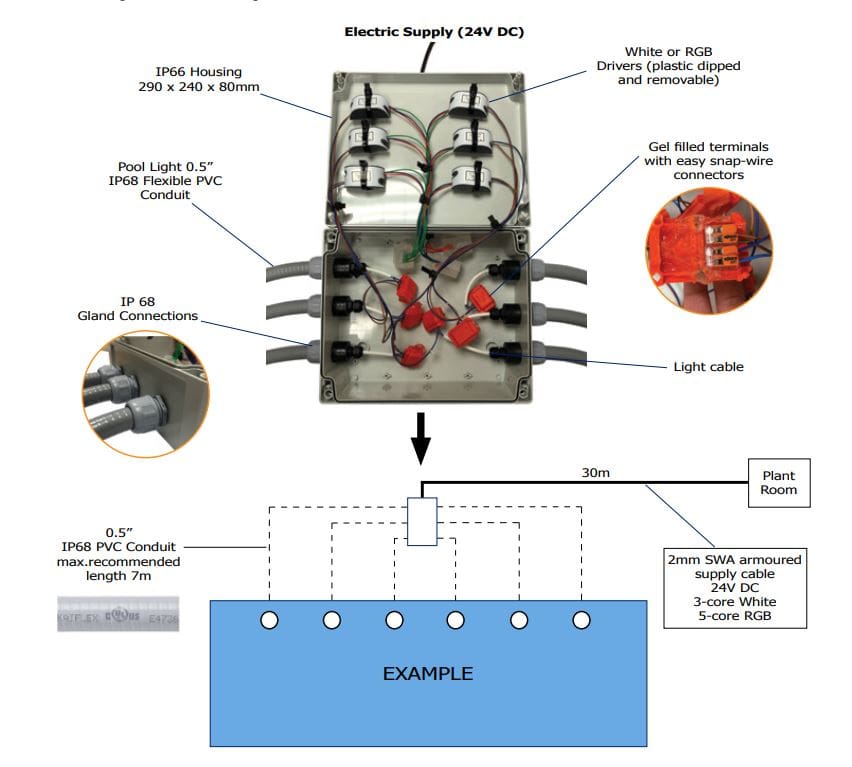

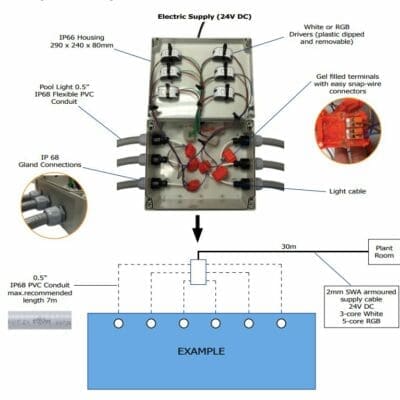

Simply connect a 24V DC electrical supply using 2mm SWA armoured cable or regular flex (via MDPE water pipe) to the IP66 rated driver box installed beneath paving/tiles surround and central to poolside. Then, use our 0.5” IP68 rated flexible conduit to connect to the back of light niches or wall fitting
Fittings on the end of Flexible Conduit

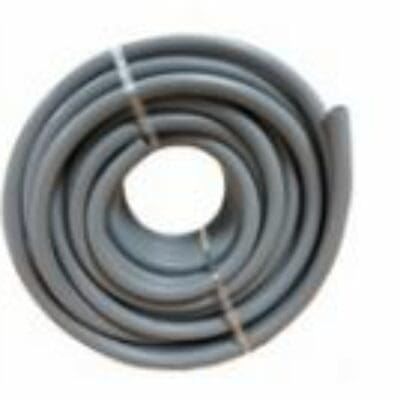

30.5m PVC 0.5″ Flexible Conduit
(can be glued)
IP68
Conduit Gland Connections

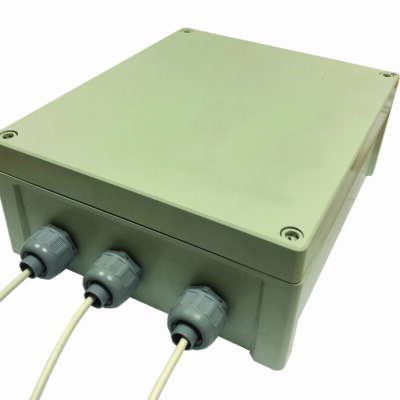

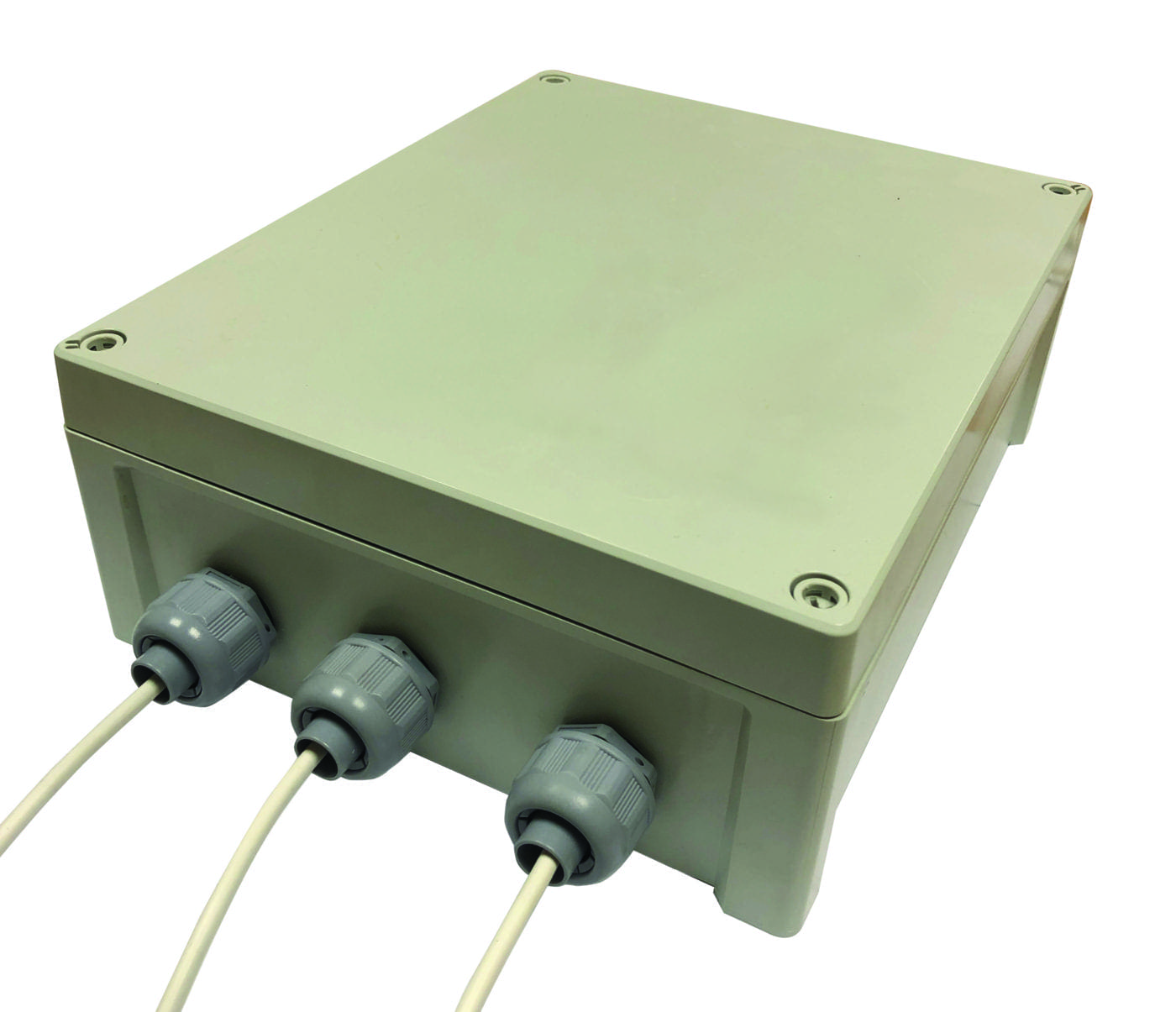

6-way IP66 Housing
290 x 240 x 80mm

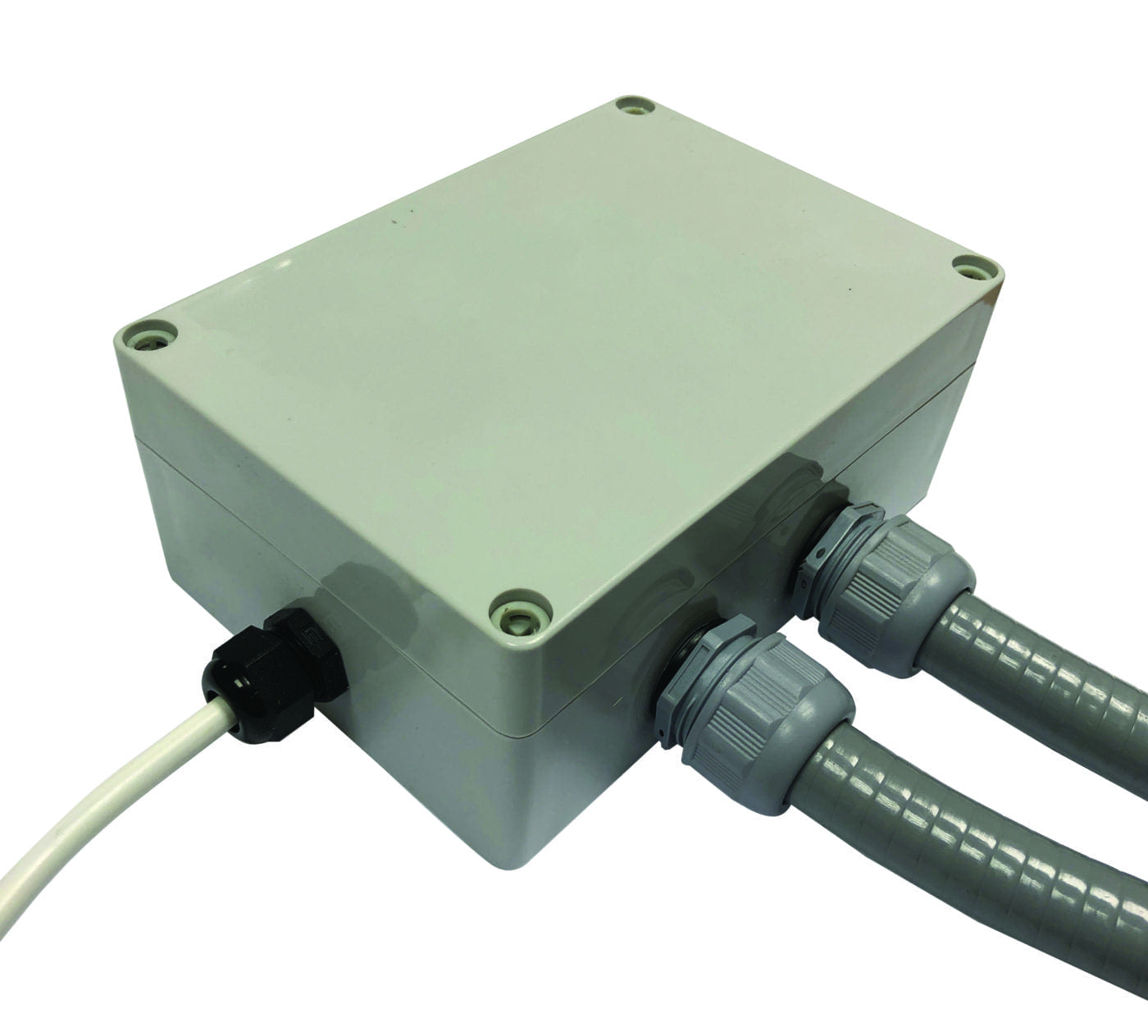

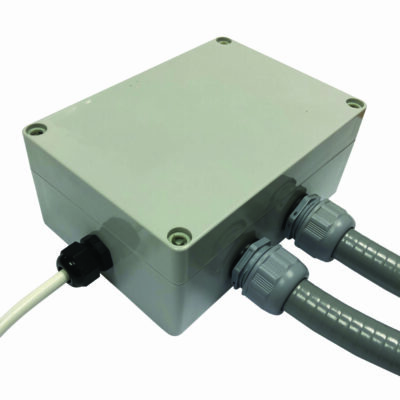

2-way IP66 Housing
175 x 125 x 75mm
| Code | WHITE/STATIC OUTDOOR IP66 RATED DRIVER DECK BOX FOR WT1-2-5 | Price |
|---|---|---|
| WT 9232-N | 2-way white/static IP65 Outdoor Pre-wired Deck Box for 2 x WT1-2-5 | £272.00 |
| WT 9228-N | 3-way white/static IP65 Outdoor Pre-wired Deck Box for 3 x WT1-2-5 | £302.00 |
| WT 9229-N | 4-way white/static IP65 Outdoor Pre-wired Deck Box for 4 x WT1-2-5 | £416.00 |
| WT 9230-N | 5-way white/static IP65 Outdoor Pre-wired Deck Box for 5 x WT1-2-5 | £506.00 |
| WT 9231-N | 6-way white/static IP65 Outdoor Pre-wired Deck Box for 6 x WT1-2-5 | £605.00 |
| Code | WHITE/STATIC OUTDOOR IP66 RATED DRIVER DECK BOX FOR WT3 | Price |
| WT 9241-N | 3-way white/static IP65 Outdoor Pre-wired Deck Box for 2 x WT4 | £221.00 |
| WT 9242-N | 4-way white/static IP65 Outdoor Pre-wired Deck Box for 3 x WT4 | £296.00 |
| WT 9243-N | 5-way white/static IP65 Outdoor Pre-wired Deck Box for 4 x WT4 | £324.00 |
| WT 9244-N | 6-way white/static IP65 Outdoor Pre-wired Deck Box for 5 x WT4 | £332.00 |
| Code | WHITE/STATIC OUTDOOR IP66 RATED DRIVER DECK BOX FOR WT4 | Price |
|---|---|---|
| WT 9033-N | 2-way white/static IP65 Outdoor Pre-wired Deck Box for 1 x WT1-2-3 | £272.00 |
| WT 9034-N | 3-way white/static IP65 Outdoor Pre-wired Deck Box for 2 x WT1-2-3 | £302.00 |
| WT 9035-N | 4-way white/static IP65 Outdoor Pre-wired Deck Box for 3 x WT1-2-3 | £405.00 |
| WT 9036-N | 5-way white/static IP65 Outdoor Pre-wired Deck Box for 4 x WT1-2-3 | £506.00 |
| WT 9037-N | 6-way white/static IP65 Outdoor Pre-wired Deck Box for 5 x WT1-2-3 | £605.00 |
| Code | KAIFLEX 0.5″ FLEXIBLE CONDUIT | Price |
| WT 9021-N | Kaiflex 30.5m x 0.5″ Flexible Conduit (IP68) (Max. Install Length 7m) | £145.00 |
| WT 9022-N | Kaiflex P602 0.5″ Threaded Connecting Gland Spare Part | £3.50 |
| WT 9023-N | WT1-5 Reducing Kit (2″ – 1.5″/ 1.5″ – 0.75″/0.75″ – 0.5″) | £10.00 |
| WT 9024-N | WT3 Reducing Kit (1.25″ – 1″/ 1″ – 0.75″/0.75″ – 0.5″) | £10.00 |
| Code | POOLSIDE DECK BOX STAINLESS COVER TRAYS 15MM-50MM | Price |
| PP33015-N | Poolside Deck Box Stainless Cover Tray Depth 15mm | £210.00 |
| PP33040-N | Poolside Deck Box Stainless Cover Tray Depth 40mm | £223.00 |
| PP33050-N | Poolside Deck Box Stainless Cover Tray Depth 50mm | £230.00 |
| PPLK-N | Lifting Key | £24.50 |
