Rectangular gray pool heat-pump unit houses a large black circular fan and recessed digital control panel, sitting against a white background, labeled WATERCO water, the liquid of life.

Waterco Aquaflow XL Inverter Heat Pump - Side Mount

A colorful company logo shows the text "Electr Heat XL ECO-V" with a stylized orange-red flame between "Electr" and "Heat", blue and green lettering on a white background.
Array of ten colorful square icons above two columns of product features on a white background: Smart Controls; Inbuilt Safety Devices; Powerful Heat Transfer; Automatic Hot gas De-Icing; R410A Refridgerant; Titanium Duel Core; Large Evaporator Area; Scroll Compressor; Weatherproof cabinet; 5 -Year Warranty

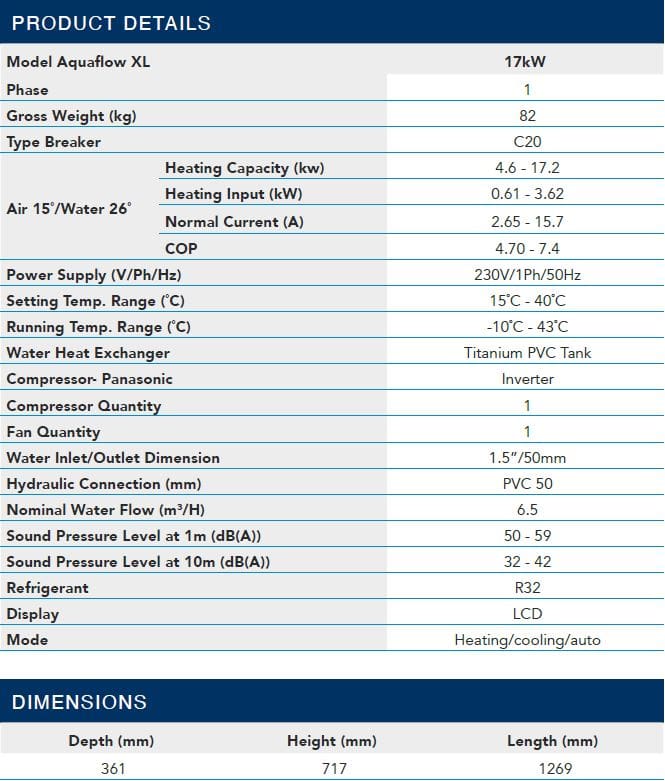

Product specification sheet shows a table of technical data for a pool heat pump under a blue header, listing model, electrical, performance and dimensions. Transcription: PRODUCT DETAILS Model Aquaflow XL 17kW Phase 1 Gross Weight (kg) 82 Type Breaker C20 Air 15°/Water 26° Heating Capacity (kw) 4.6 - 17.2 Heating Input (kW) 0.61 - 3.62 Normal Current (A) 2.65 - 15.7 COP 4.70 - 7.4 Power Supply (V/Ph/Hz) 230V/1Ph/50Hz Setting Temp. Range (°C) 15°C - 40°C Running Temp. Range (°C) -10°C - 43°C Water Heat Exchanger Titanium PVC Tank Compressor- Panasonic Inverter Compressor Quantity 1 Fan Quantity 1 Water Inlet/Outlet Dimension 1.5"/50mm Hydraulic Connection (mm) PVC 50 Nominal Water Flow (m³/H) 6.5 Sound Pressure Level at 1m (dB(A)) 50 - 59 Sound Pressure Level at 10m (dB(A)) 32 - 42 Refrigerant R32 Display LCD Mode Heating/cooling/auto DIMENSIONS Depth (mm) 361 Height (mm) 717 Length (mm) 1269
