Waterco - SMDD Commercial Filter
- 1.2 m Bed Depth
- Ultra Smooth Bobbin Finish
- Available in 2.5 Bar, 4 BAr, 6 Bar & 8 Bar pressure ratings.
- Vinylester resin coating available
- Flanged connections
- Nozzle plate version (SPDD)
Trust in Waterco’s commitment to excellence and enjoy pristine pool water for years to come with our superior swimming pool equipment.
Prices - 2.5 Bar (4 Bar available POA)
| Code | Description | Nom. Size | Size | Price |
|---|---|---|---|---|
| 224975451826L | SMDD 750 (2’/63mm port size) | 200mm service hatch | 30″ | £2,693.91 |
| 224990480136L | SMDD 900 (3’/90mm port size) | 200mm service hatch | 36″ | £4,484.50 |
| 2249105080136L | SMDD 1050 (3’/90mm port size) | 200mm service hatch | 42″ | £5,492.09 |
| 2249120043037L | SMDD 1200 (3’/90mm port size) | 420 x 320mm service hatch | 48″ | £6,651.29 |
| 224914001025L | SMDD 1400 (4’/110mm port size) | 420 x 320mm service hatch | 56″ | £8,073.44 |
| 224916001025L | SMDD 1600 (4’/110mm port size) | 420 x 320mm service hatch | 64″ | £10,574.63 |
| 224918001525L | SMDD 1800 (6’/160mm port size) | 420 x 320mm service hatch | 70″ | £13,220.91 |
| 224920001525L | SMDD 2000 (6’/160mm port size) | 420 x 320mm service hatch | 79″ | £15,933.20 |
| 2249220041525L | SMDD 2200 (6’/160mm port size) | 420 x 320mm service hatch | 87″ | £19,309.27 |
| 2249235015435 | SMDD 2350 (6’/160mm port size) | 420 x 320mm service hatch | 96″ | £27,440.83 |
| All Prices are excluding VAT | Excludes MPV (4.0 Bar) |
Performance
| Model | Flange Size mm | Flange size Inches | Filter Area m2 | Bed Depth.mm | Max. flow 30m3/hr/m3 | Max. flow 40m3/hr/m3 | Sand Kg | Zeoplus Kg | Discharge volume after 5min backwash/rinse cycle m3 |
|---|---|---|---|---|---|---|---|---|---|
| SMDD750 | 63 | 3 | 0.44 | 1200 | 13 | 18 | 795 | 630 | 1.4 |
| SMDD900 | 90 | 3 | 0.64 | 1200 | 19 | 25 | 1200 | 986 | 2.1 |
| SMDD1050 | 90 | 3 | 0.87 | 1200 | 26 | 35 | 1665 | 1386 | 2.9 |
| SMDD1200 | 90 | 3 | 1.13 | 1200 | 34 | 45 | 2045 | 1681 | 3.8 |
| SMDD1400 | 110 | 4 | 1.54 | 1200 | 46 | 62 | 2840 | 2334 | 5.1 |
| SMDD1600 | 110 | 4 | 2.01 | 1200 | 60 | 80 | 3685 | 3029 | 6.7 |
| SMDD1800 | 160 | 6 | 2.55 | 1200 | 76 | 102 | 4975 | 4089 | 8.5 |
| SMDD2000 | 160 | 6 | 3.14 | 1200 | 94 | 126 | 6090 | 5005 | 10.5 |
| SMDD2350 | 160 | 6 | 4.34 | 1200 | 130 | 174 | 8480 | 6970 | 14.4 |
| SMDD2500 | 160 | 6 | 4.91 | 1200 | 130 | 174 | 9630 | 7250 | 6.4 |

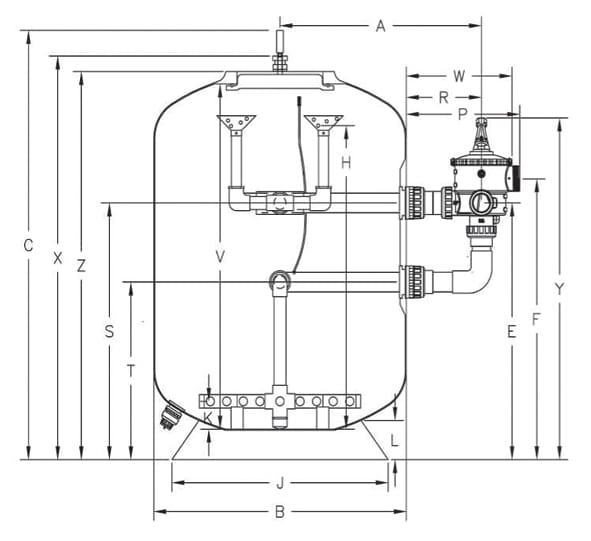

Dimensions
| Model | mm | Inches | A | B | C | W | R | P | E | F | K | V | H | L | X | Y | Z | J | S | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SMDD750 | 63 | 3 | 613 | 772 | 2044 | 334 | 262 | 191 | 1586 | 1688 | 120 | 1780 | 1713 | 20 | 2011 | 1845 | 1938 | 678 | 1586 | 1383 |
| SMDD900 | 90 | 3 | 824 | 923 | 2268 | 510 | 363 | 548 | 1680 | 1790 | 155 | 1930 | 1780 | 120 | 2183 | 2062 | 2113 | 678 | 1680 | 1324 |
| SMDD1050 | 90 | 3 | 901 | 1077 | 2270 | 510 | 363 | 548 | 1650 | 1760 | 176 | 1950 | 1820 | 176 | 2185 | 2032 | 2115 | 1045 | 1650 | 1294 |
| SMDD1200 | 90 | 3 | 977 | 1229 | 2243 | 510 | 363 | 548 | 1665 | 1775 | 176 | 1900 | 1750 | 176 | 2158 | 2047 | 2088 | 1045 | 1665 | 1309 |
| SMDD1400 | 110 | 4 | 1205 | 1442 | 2313 | 689 | 556 | 440 | 1330 | 1465 | 218 | 1975 | 1800 | 218 | 2228 | 1774 | 2158 | 1202 | 1330 | 896 |
| SMDD1600 | 110 | 4 | 1306 | 1644 | 2285 | 689 | 474 | 629 | 989 | 651 | 218 | 1950 | 1800 | 218 | 2200 | 1865 | 2130 | 1202 | 1421 | 989 |
| SMDD1800 | 160 | 6 | N/A | 1839 | 2260 | N/A | N/A | N/A | N/A | N/A | 315 | 2010 | 1920 | 315 | 2175 | N/A | 2105 | 1755 | 1383 | 900 |
| SMDD2000 | 160 | 6 | N/A | 2042 | 2398 | N/A | N/A | N/A | N/A | N/A | 245 | 2100 | 1920 | 245 | 2313 | N/A | 2243 | 1755 | 1383 | 900 |
| SMDD2350 | 160 | 6 | N/A | 2575 | 2310 | N/A | N/A | N/A | N/A | N/A | 340 | 2118 | 1955 | 340 | 2330 | N/A | 2405 | 2037 | 1450 | 967 |
| SMDD2500 | 160 | 6 | N/A | 2575 | 2510 | N/A | N/A | N/A | N/A | N/A | 355 | 2190 | 1955 | 340 | 2405 | N/A | 2405 | 2037 | 1494 | 1011 |
