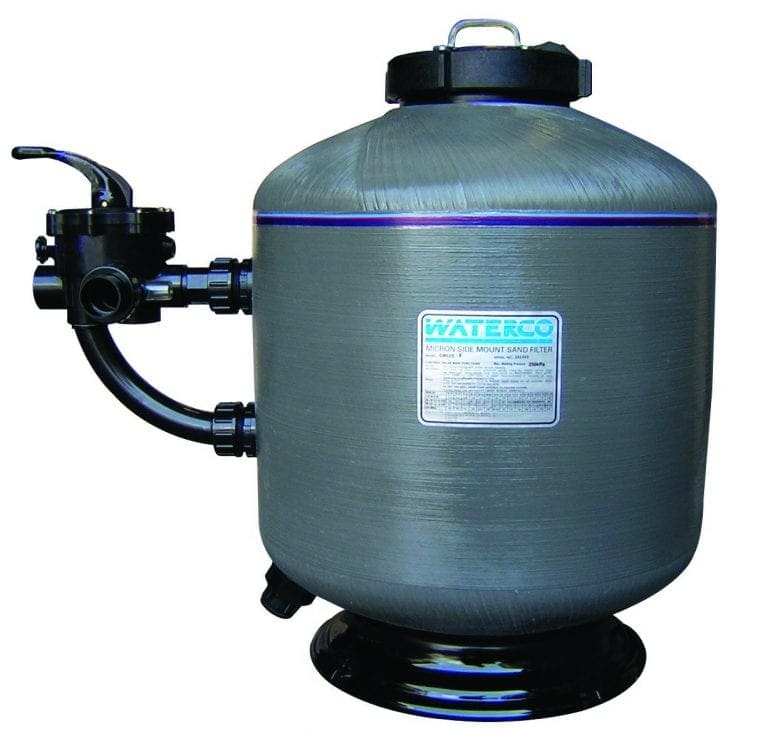

Waterco Side Mount Bobbin Wound Filter
The ultimate in pool water clarity. Waterco fibreglass pool filters are perfectly suited to the constant increases and decreases in pressure experienced by sand filters.
Accelerated cyclic testing has shown that even after simulating 20 years of use, Waterco fibreglass filters withstood cyclic wear and tear better than most other filters in its class.
Waterco is proud to show its ultimate confidence in its range of Micron fibreglass filters by offering a 10 year full tank warranty for residential installations.
- Filter max working pressure 2.5 BAR
- 10 Year Warranty.
- UV Resistant.
- 8” Removable clear lid.
- Internal air bleed system.
- Hydraulically balanced laterals to maximise water flow and filtration.
- Multiport valve (4 BAR) comes c/w 1.5” & 50mm socket unions.
Trust in Waterco’s commitment to excellence and enjoy pristine pool water for years to come with our superior swimming equipment supplies.
Prices
Waterco Filter with Multi-Port Valve & Pressure gauge
| Code | Description | Price |
|---|---|---|
| 1530-Y | 500mm/20″ Bobbin Wound Side Mount | £951.23 |
| 1531-Y | 600mm/24″ Bobbin Wound Side Mount | £1,013.98 |
| 1532-Y | 700mm/28″ Bobbin Wound Side Mount | £1,216.77 |
| 1533-Y | 750mm/30″ Bobbin Wound Side Mount | £1,584.12 |
| 1534-Y | 900mm/36″ Bobbin Wound Side Mount | £2,086.21 |
| All Prices are excluding VAT | 1.5″ MPV supplied with 20-28″ Filters, 2″ supplied with 30-36″ Filters. |
Performance
| Model | Inner dia.mm | Bed Depth.mm | Filter Area sq m3 | Valve Size | Sand Kg | Zeoplus Kg | Dom.flow m3/hr | Max. pool size m2 | Com. flow m3/hr | Min. pool size m2 |
|---|---|---|---|---|---|---|---|---|---|---|
| SM500 | 500 | 290 | 0.2 | 50/1.5 | 90 | 74 | 10 | 56 | 7 | 43.2 |
| SM600 | 600 | 360 | 0.28 | 50/1.5 | 140 | 115 | 14 | 81 | 10 | 60.5 |
| SM700 | 700 | 380 | 0.38 | 63/2 | 190 | 156 | 19 | 111 | 14 | 82.1 |
| SM750 | 750 | 400 | 0.44 | 63/2 | 210 | 173 | 21 | 127 | 16 | 95 |
| SM900 | 900 | 400 | 0.64 | 63/2 | 360 | 296 | 31 | 183 | 23 | 138.2 |

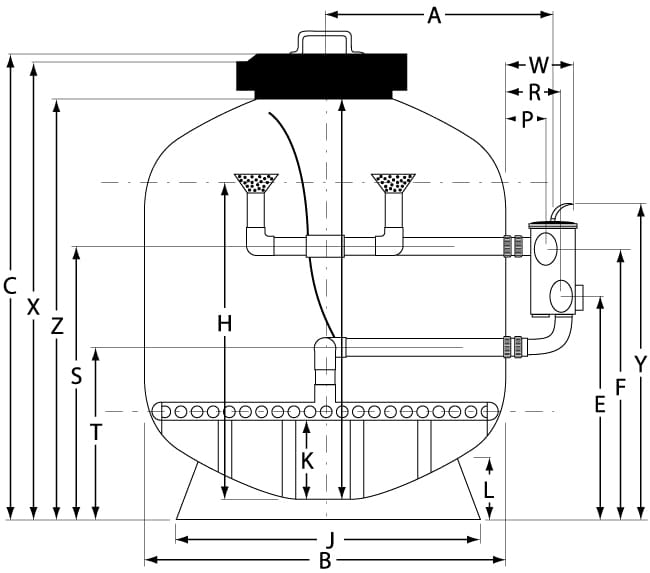

Dimensions

| Model | A | B | C | W | R | P | E | F | K | V | H | L | X | Y | Z | J | S | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM500 | 464 | 520 | 815 | 310 | 215 | 153 | 594 | 649 | 100 | 652 | 585 | 70 | 743 | 790 | 715 | 445 | 485 | 283 |
| SM600 | 516 | 622 | 880 | 310 | 215 | 153 | 629 | 684 | 105 | 680 | 601 | 88 | 804 | 825 | 778 | 540 | 520 | 317 |
| SM700 | 565 | 719 | 948 | 321 | 248 | 178 | 520 | 601 | 120 | 728 | 685 | 90 | 905 | 750 | 835 | 620 | 520 | 317 |
| SM750 | 587 | 772 | 993 | 321 | 248 | 178 | 593 | 674 | 113 | 763 | 652 | 120 | 914 | 823 | 892 | 678 | 593 | 390 |
| SM900 | 687 | 923 | 1115 | 321 | 248 | 178 | 656 | 737 | 130 | 860 | 750 | 120 | 030 | 886 | 1011 | 678 | 658 | 453 |
