LUXE Tilestone Hydrotherapy Pool
At Paramount Pools, we believe every hydrotherapy pool should be tailor-made to suit your needs. Above or below ground, massage stations, air therapy, glass windows are all options that can be accommodated for.
We can work with your drawings and plans or provide concepts based on your ideas to achieve the desired result. To ensure everything is perfect with your design, our experts create full CAD drawings giving you all the dimensions you need to ensure everything will fit with precision. We can provide structural calculations for standard and bespoke designs.
Bespoke One-piece Hydrotherapy pool – ARA Architects and design consultants.
The design brief was to produce a 5.40 x 2.40m hydrotherapy pool, insulated to Part L standards, free-standing incorporating an Aquamatic Safety Cover System.
Their Pool Specifications
- Wall Fittings – Factory Fitted
- Spa Skimmer – Stainless
- Wall Inlet – Stainless
- Low Side Suction – Stainless
- Vac Point – Stainless
- Massage Stations – Factory Fitted
- 10 No. Massage Jets SIDE WALL (1 X 6, 1 X4) Water/air.
- 8 No. Massage Jets BENCH SEAT (2X4) Water/air.
- Floor Hydro station (Geyser) – Factory Fitted
- 330 x 330mm Square Plate Floor Hydro Station.
- 1.5kW Air Blower (with Silencer) for above.
- Entrance Hand Rail
- Custom Made Entrance handrail
- RGB LED Lighting System
WT 5556-NT2 RGB (6W) LED Pool Light (Threaded) CW 20m cable. - Aquamatic Safety Cover
Paramount Pools is known for supplying high-quality pool equipment to professional pool installers and retail outlets throughout the UK, including the Channel Islands and Ireland, and we welcomed the challenge of incorporating a system that was robust, reliable, and produced consistently clear pool water for its affluent residents and their guests.

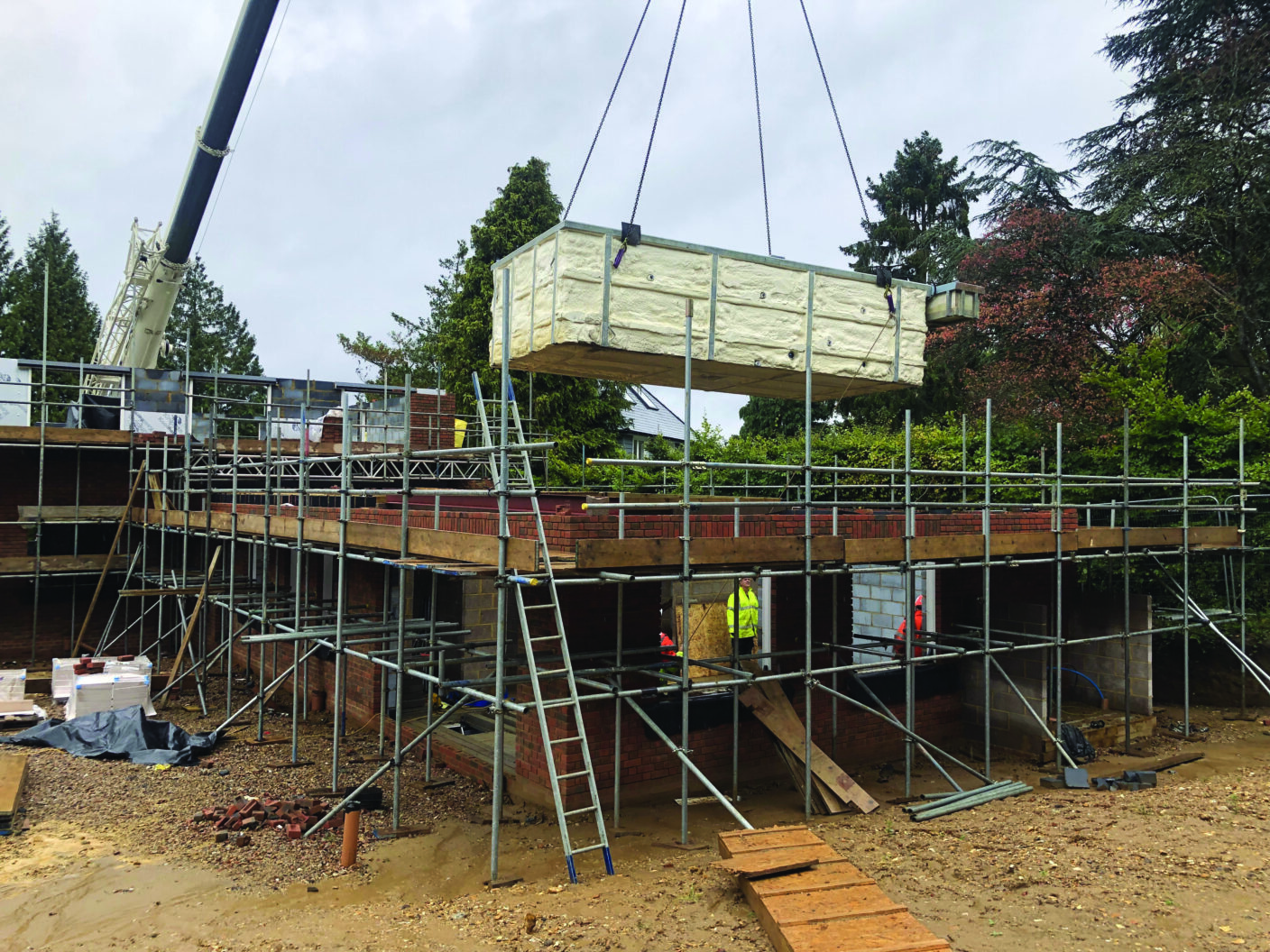

The Installation Process

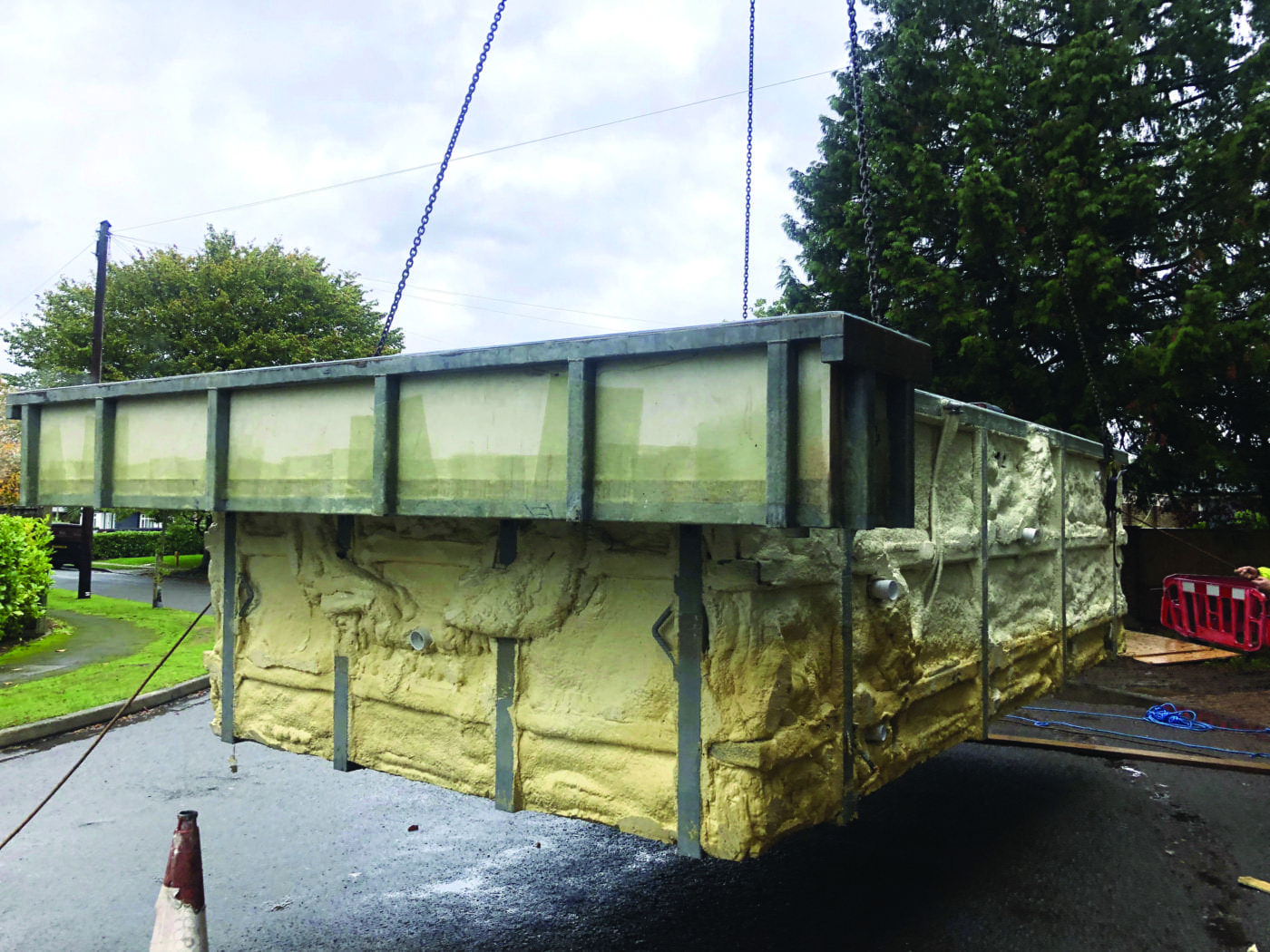

The task at hand was to bring to life a 5.40 x 2.40m hydrotherapy pool, designed with precision to meet the stringent Part L standards and featuring a free-standing structure equipped with an Aquamatic Safety Cover System.
The pool specifications left no detail untouched, with factory-fitted wall fittings, a spa skimmer, stainless steel wall inlet, low side suction, and vac point. The hydrotherapy experience is elevated with 10 massage jets on the side wall (1 X 6, 1 X 4) and 8 on the bench seat (2 X 4), all meticulously water and air integrated.
A factory-fitted floor hydro station with a 330 x 330mm square plate and a 1.5kW air blower, complete with a silencer, further enriches the aquatic atmosphere. Custom touches include a handcrafted entrance handrail for easy access and an RGB LED lighting system featuring a WT 5556-NT2 RGB (6W) LED Pool Light threaded with a CW 20m cable. To ensure safety and insulation, the Aquamatic Safety Cover System boasts a Thermosafe Spa cover with a complete stainless steel track level lid system, housed in a durable GRP housing measuring 2.9 x 0.45 x 0.45m. This meticulous installation process transformed a concept into a state-of-the-art hydrotherapy pool.
No project is too big or too small for Paramount Pools, and we’ll always have the right product for the job. Join our network of dealers to have access to exclusive swimming pool equipment and swimming pool filters for your next build or renovation.
